Corefix Connect 120 Dot & Dab Wall Fixing Pack of 4
Sold & shipped by Metex
Available online only and not stocked in B&Q stores
£9.60
Product details
Product information

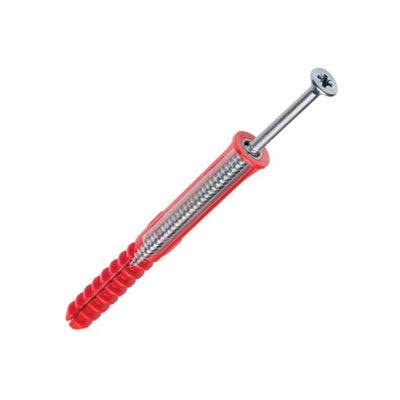

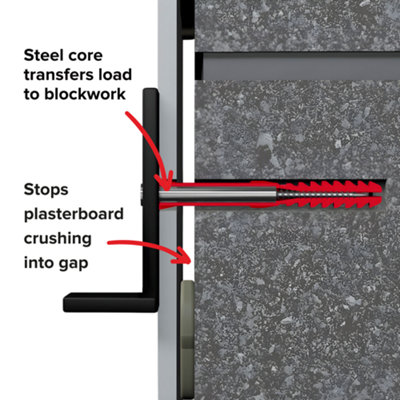

Corefix 120 - heavy duty dot & dab wall (plasterboard over blockwork) fixing, easy to install using just a drill, screwdriver & hammer. Patented system that includes an engineered steel core that bridges the cavity behind the plasterboard and transfers the load straight to the blockwork. Avoids having to rely on the strength of the plasterboard alone to hold heavy items.
- Guarantee - 1 year
- Suitable for Brick, block, concrete & plasterboard

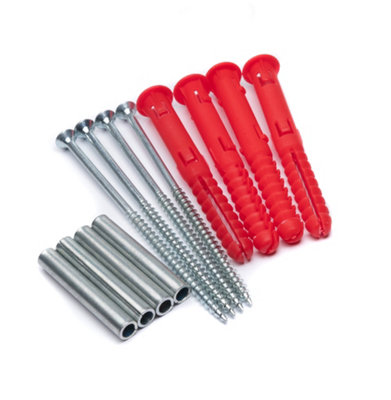

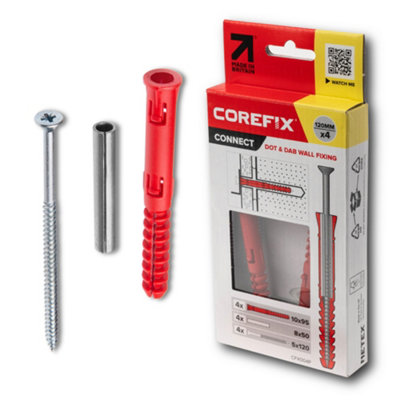

- Comes with 4x plugs, 4x screws, 4x steel cores
Features and benefits
120mm screw length. 10 -30mm fixture depth, maximum distance to blockwork from face of plasterboard to block is 45mm. 55kg safe working load per fixing (safety factor of 2). 4 pack.
- Heavy Duty Dot & Dab wall fixing
- Steel Core Transfers Load to Blockwork
- 55kg Safe Working Load/Fixing (Safety Factor 2)
- Suitable for 10 - 30mm Bracket / Fixture Thickness
- Suitable for All Brick & Block Types
- Avoids Plasterboard Crushing
- Made In The UK
Specifications
| Brand | Corefix |
|---|---|
| Colour | red, silver |
| Diameter (mm) | 10mm |
| Drill bit size | 10mm |
| Length (mm) | 95mm |
| Material | Plastic & steel |
| Maximum load | 55kg |
| Maximum load (solid wall) | 55kg |
| Model name/number | CFX004P |
| Pack quantity | 4 |
| Weight (g) | 110g |
| Product code | 5060517030117 |
