Corefix Connect 100 Dot & Dab Wall Fixing Pack of 4
Sold & shipped by Metex
Available online only and not stocked in B&Q stores
£8.99
Product details
Product information

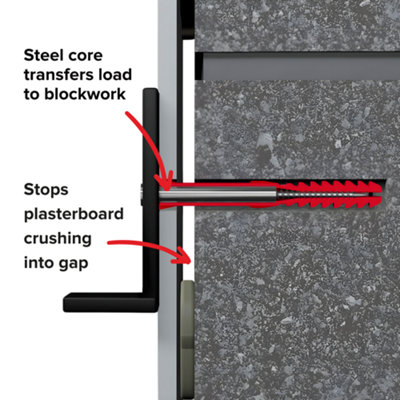

Corefix 100 - heavy duty dot & dab wall (plasterboard over blockwork) fixing, easy to install using just a drill, screwdriver & hammer. Patented system that includes an engineered steel core that bridges the cavity behind the plasterboard and transfers the load straight to the blockwork. Avoids having to rely on the strength of the plasterboard alone to hold heavy items.
- Guarantee - 1 year
- Suitable for Brick, block, concrete & plasterboard

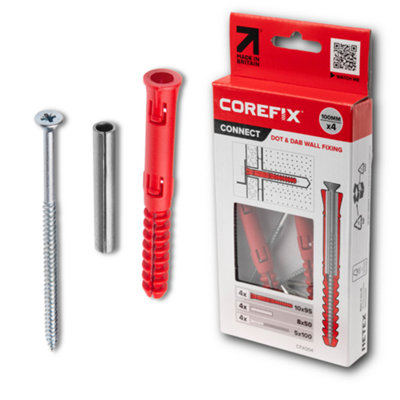

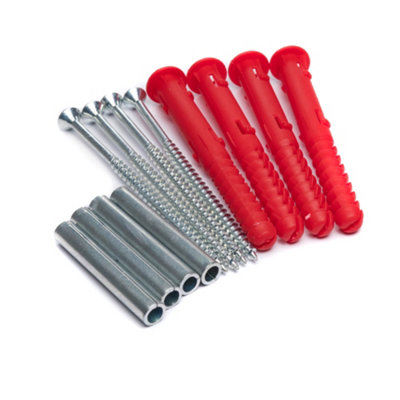

- Comes with 4x plugs, 4x screws, 4x steel cores
Features and benefits
100mm screw length. 10mm maximum fixture depth, maximum distance to blockwork from face of plasterboard 45mm. 55kg Safe Working Load per fixing (safety factor of 2). 4 pack.
- Heavy Duty Dot & Dab wall fixing
- Steel Core Transfers Load to Blockwork
- 55kg Safe Working Load/Fixing (Safety Factor 2)
- Max. 10mm Bracket / Fixture Thickness
- Suitable for All Brick & Block Types
- Avoids Plasterboard Crushing
- Made In The UK
Specifications
| Brand | Corefix |
|---|---|
| Colour | red, silver |
| Diameter (mm) | 10mm |
| Drill bit size | 10mm |
| Length (mm) | 95mm |
| Material | Plastic & steel |
| Maximum load | 55kg |
| Maximum load (solid wall) | 55kg |
| Pack quantity | 4 |
| Weight (g) | 105g |
| Product code | 5060517030001 |
