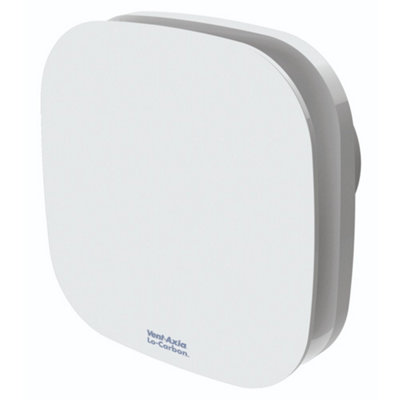

Vent Axia 474496A Continuously Running Extractor Fan Lo-Carbon NBR dMEVe 100mm
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
Product details
Product information
This model is normally used in bathroom or toilet locations. It is designed to run permanently, using a very low power consumption and can optionally be boosted to a higher speed by the use of an external switch (not included).
Requires a permanent live, switched live + neutral (3 wires, excluding earth) connected if manual boost function is required.
The constant volume technology automatically adjusts the speed of the fan to ensure the desired airflow is delivered. A silent high pressure axial impeller means Lo-Carbon dMEV can meet the requirements of many domestic installations without the need to use a traditional centrifugal fan.
- Fittings & fixings not included
- Ducting not included
Features and benefits
- Mains voltage 220-240V AC 50Hz. Power consumption 7 watts (on maximum speed). Extraction rate 6l/s, 7l/s or 8l/s (selectable at installation)
- Boost speed 13l/s or 14l/s (selectable at installation). Quiet running with sound output 13-41dB(A) @ 3m (depending on speed selected)
- Manual boost to higher speed via switch. Can be wall or ceiling mounted. Airflow and system pressure display
- Built in spirit level to aid installation. Class II - double insulated. IPX5 - suitable for installation is zone 1 or 2
- Multi-orientation grille. NHBC Approved. STAS Approved (Scotland). UKCA & CE certified
- Dimensions:190mm wide x 190mm high x 43mm deep (beyond installed surface). 99mm diameter spigot, projects for 81mm. For connection to 100mm / 4 inch ducting.
Specifications
| Brand | Vent-Axia |
|---|---|
| Material | ABS plastic |
| Colour | White |
| Product height | 190mm |
| Product width | 190mm |
| Projection from the wall | 43mm |
| Spigot diameter | 99mm |
| Extraction rate | 50.4m³/h |
| Power voltage supply | 240V |
| Room use | Bathroom & WC |
| IP rating | IPX5 |
| Product code | 5015135953669 |
