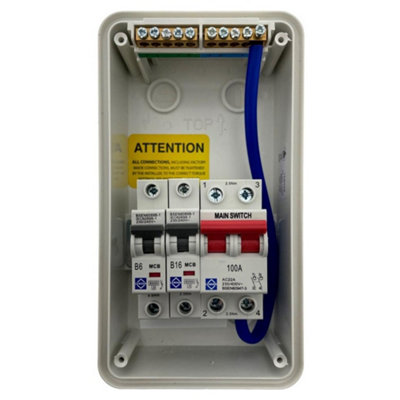

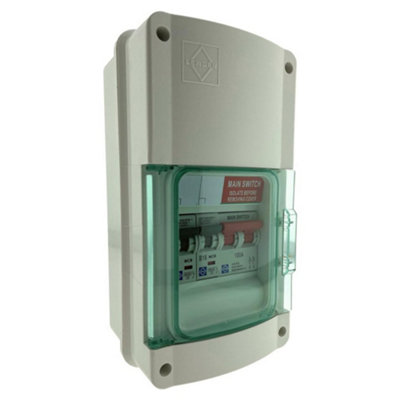

Lewden E-GARAGE-MS Garage Consumer Unit IP55 with 100A Main Switch & 16A / 6A MCB's
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£
39.40
Checking availability...
Product details
Product information
Garage Consumer Unit
- Guarantee - 1 year
- CE marked
- Fittings & fixings included
- DIN rail supplied
- Fixed busbar
Features and benefits
- 100 Amp double pole main switch
- 1 x 16A and 1 x 6A type B 6kA miniature circuit breakers
- IP55 rated - suitable for indoor or outdoor use
- 1 x 25mm and 1 x 20mm knockouts top and bottom
- Manufactured to BS EN 61439-3
- Should be supplied from a circuit protected by RCD or RCCB device
- CE certified
Specifications
| Amp rating | 63A |
|---|---|
| Brand | Lewden |
| Consumer unit usage | Garage |
| Mains switch rating | 63A mains switch |
| Model name/number | E-GARAGE-MS |
| Number of MCBS supplied | 2 x MCBs (1 x 6A & 1 x 16A) |
| Number of populated ways | 2 |
| Number of RCDS supplied | 0 x RCDs |
| Number of RCBOs supplied | 0 x RCBOs |
| Pack quantity | 1 |
| Product depth | 97mm |
| Product height | 228mm |
| Product weight | 1g |
| Product width | 123mm |
| Product code | 5026992044964 |
