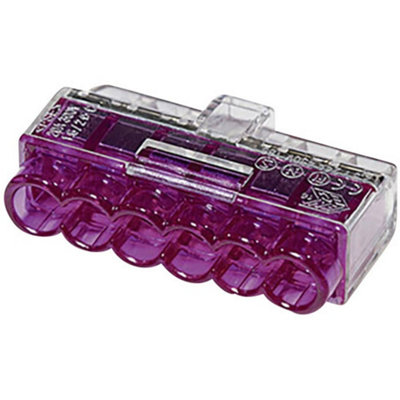

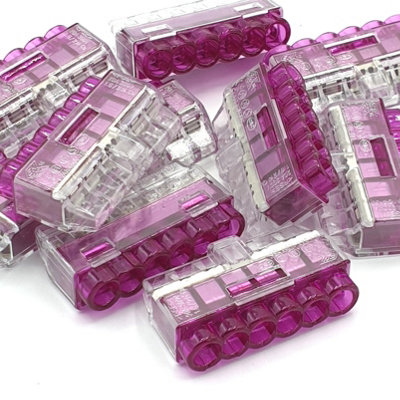

HellermannTyton 10pcs 6-Way Push In Terminals Wire Connectors HelaCon Plus Mini

10 pieces of 6-Way/Pole push in wire terminal in transparent/violet colour from HelaCon Plus Mini electrical connectors range. The push in terminal is suitable for 0.5-2.5mm2 solid or multiwired core wires. Pushfit connector is 40% smaller than usual electrical terminals which helps in limited space electrical boxes. HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires. Features: - 40 % smaller – Space saving design; - Low insertion force – Easy to use, saves time on installation; - Easy access to voltage test entry and innovative port shape design; - Correct installation can be visually checked through transparent housing; - Different colour codes for easy identification of size; - Allows different conductor diameters in each entry; - Safe application, installation and maintenance; Specification: - Quantity: 10; - Colour: Transparent(CL), Violet(VT); - Number of Conductors: 6 pole; - Suitable for: 0.5 - 2.5 mm2 solid wires / 1.0 - 2.5 mm2 stranded wires; - Operating Temperature: -30 deg C to +85 deg C; - Material: Polycarbonate(PC); - Max Current: 24A; - Max Voltage: 600V;
