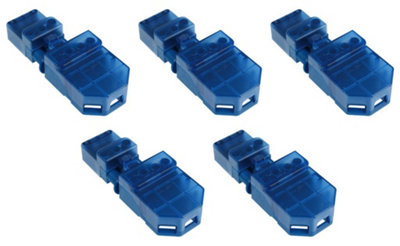

5 x Click CT101C Flow Pull Apart Junction Box Connectors - 3 Pole 20 Amp
Sold & shipped by Prime Electrical Group Ltd
Available online only and not stocked in B&Q stores
£
16.95
Checking availability...
Product details
Product information
The versatile easy connecting system for fixed wiring applications. Ideal for use with downlights / LED panels etc
- Fittings & fixings not included
- Guarantee - 1 year
- Comes with Plug & Socket
- Suitable for Electrical distribution
Features and benefits
- 250V AC pull apart male / female connector. Maximum load 20 amps
- 3 pole (with additional loop terminal in female part)
- Large backed out terminals. Easy lock and release mechanism
- Cable capacity: Male: Max 1.5mm2 3 core cable; Female: Max 3 x 2.5mm2 twin and earth (with additional loop terminal)
- Fits through a 48mm aperture. Cord restraint fitted within the male connector
- Suitable for use with dimmable lighting. IP20 rated - for indoor use only
- Manufactured to BS 5733. UKCA & CE certified
Specifications
| Amp rating | 20A |
|---|---|
| Brand | Scholmore |
| Colour | Blue |
| Fitting type | Screwed |
| GS approved | Not GS approved |
| IP rating | IP20 |
| Material | Polycarbonate |
| Model name/number | CT101C |
| NF approved | Not NF approved |
| Pack quantity | 5 |
| Power voltage supply | 250V |
| Pre-wired | Not pre-wired |
| Product depth | 24mm |
| Product height | 101mm |
| Product width | 40mm |
| Standard | BS 5733 |
| Voltage | 250V |
| Product code | 5055287018434 |
