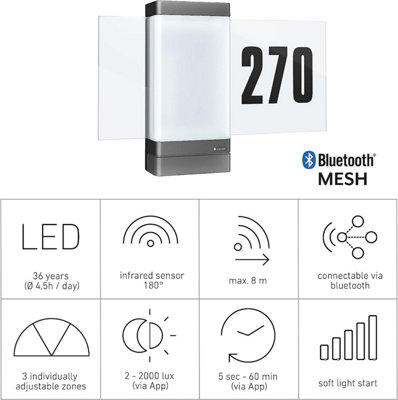

Functions at a glance

- Soft light start: elegantly and softly switches the light up to or down from 100% output

- Basic light: dimmed continuous illumination (10%–100%) throughout the night, which only switches to maximum light output when motion is detected.

- Main light: switches on when motion is detected and can be dimmed from 10–100%

- Continuous light with time teach: switches the light on continuously until a freely selectable time, without detecting motion

- Twilight setting: select the lighting conditions in which the light switches on when motion is detected

- Time setting: decide how long (5 secs – 60 mins) the light stays switched on after motion is detected

- Reach setting: three detection zones can be easily and flexibly activated and deactivated, and the sensor sensitivity adjusted

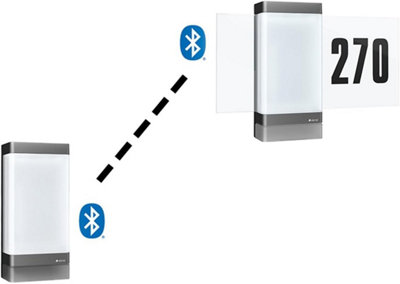

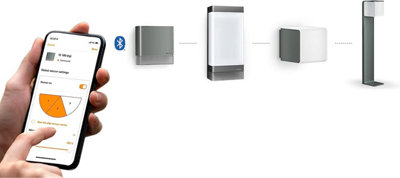

All settings can be conveniently adjusted via the app. The app also makes it possible to network any number of other Bluetooth Mesh lights to control them simultaneously and assign group functions.

The innovative digi sensor

No more time wasted defining the limits of your sensor’s range, thanks to virtually invisible digi sensors integrated in the luminaire. This can now be easily and flexibly adjusted via the STEINEL Connect App:

- The 180° detection area of the sensor is divided into three zones

- Each of the three zones can be activated or deactivated individually

- The reach and sensitivity can be individually adjusted for each of the three zones

This allows neighbouring properties or public streets and footpaths to be excluded from the detection zone and switching errors to be minimised.

The combination of three PIR sensors and innovative technology using mirrors also allows us to extend the sensor's radial and tangential detection coverage. As a result, the direction of travel has no effect on the coverage within a radius of up to 8 m.
